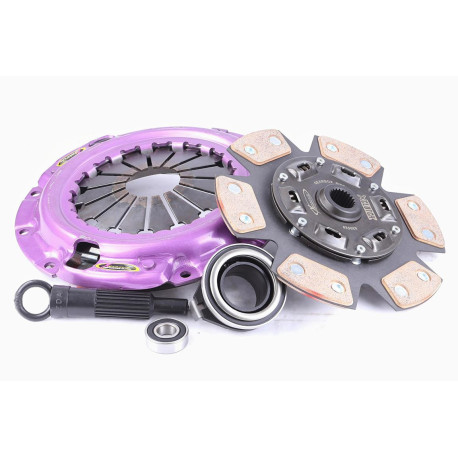

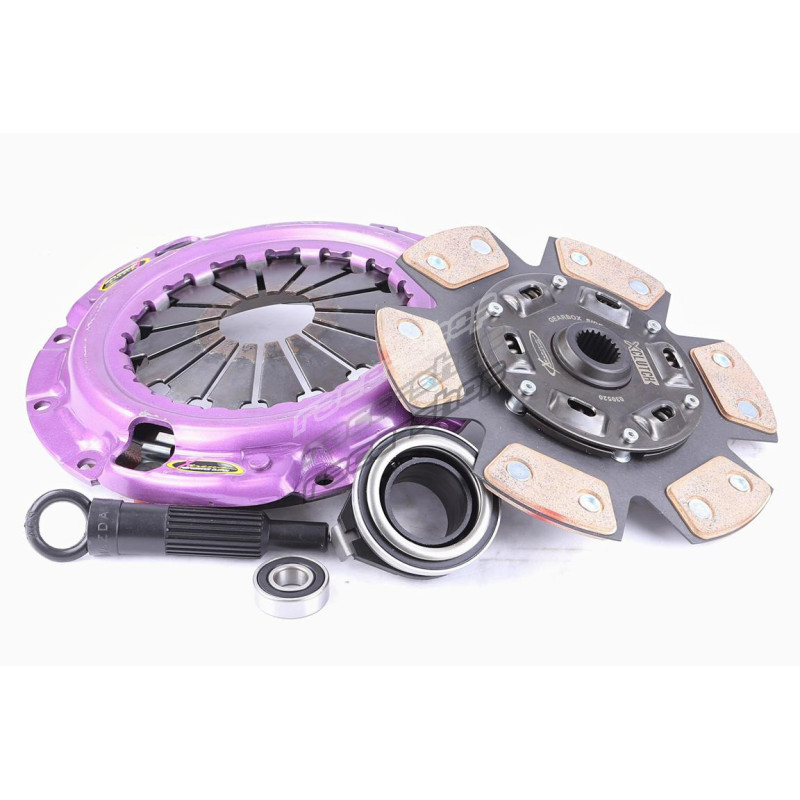

KFD23004-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic 420Nm 700Kg (40%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 420Nm
• Clamp load 700Kg 40% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KFD23004-1B

Weight: 6.9

Note:

Clamp Load: 700Kg (40% inc.)
Flywheel Step: -20.0mm/.787"
Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 22
Clutch Disc Spline Diameter (mm): 24,5
Recommended for: High Speed 4x4 Trial or Desert Race - Stage 2
Design: Single Plate

Suitable for:

- Mazda/626/2.2 12V (GD102)/1987.11-1991.07/F2 2184 Petrol 85 kW 115 BHP (1987.11 - 1991.07)
Mazda/626/2.2 12V (GD102)/1988.06-1992.04/F2 2184 Petrol 85 kW 115 BHP (1988.06 - 1992.04)
Mazda/626/2.2 12V (GV102)/1989.03-1996.11/F2 2184 Petrol 85 kW 115 BHP (1989.03 - 1996.11) ,
