KTY28590-1AX Clutch Kit Xtreme Outback Extra Heavy Duty Organic Incl Flywheel 610Nm Upgrade Kit with solid flywheel

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the Heavy Duty equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades

Specifications:

• Torque capacity 610Nm
• Clamp load Increased over standard
• Organic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme Outback

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

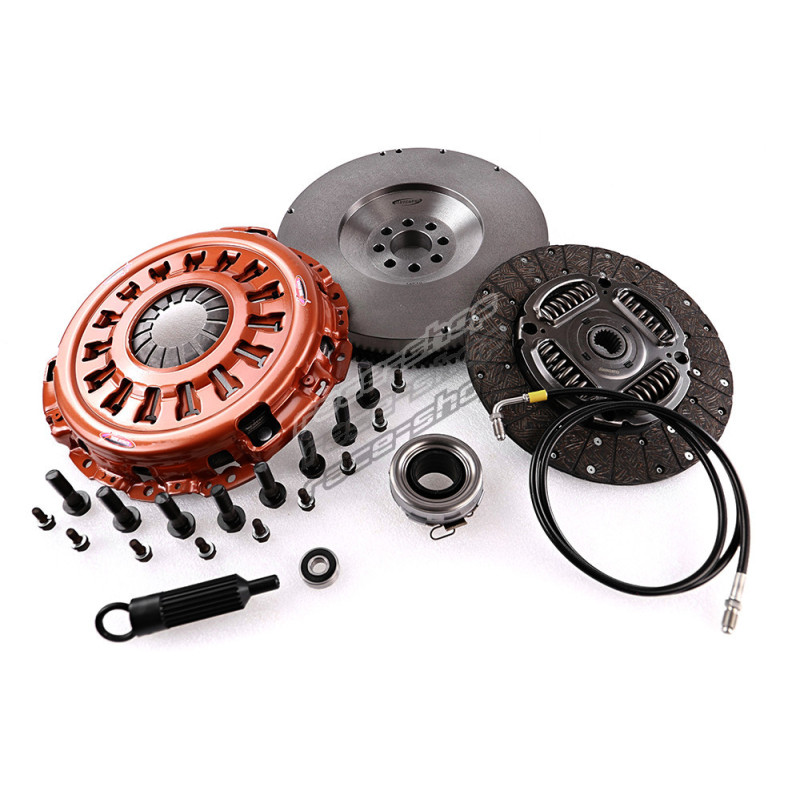

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY28590-1AX

Weight: 34.5

Note:

Torque (Nm): 610
Flywheel Step: Flat
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29,8
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate

Suitable for:

- Toyota/Fortuner/2.8 D 4x4 (GUN156)/2015.05-/1GD-FTV 2755 Diesel 130 kW 177 BHP (2015.05 -)
Toyota/Fortuner/3.0 D 4WD (KUN51_)/2009.08-2015.05/1KD-FTV 2982 Diesel 126 kW 171 BHP (2009.08-2015.05)
Toyota/Fortuner/3.0 D 4WD (KUN51)/2004.06-2015.05/1KD-FTV 2982 Diesel 120 kW 163 BHP (2004.06-2015.05)
Toyota/Hilux/2.8 D (GUN123)/2015-/1GD-FTV 2755 Diesel 125 kW 170 BHP (2015 -)
Toyota/Hilux/2.8 D (GUN136)/2015-/1GD-FTV 2755 Diesel 125 kW 170 BHP (2015 -)
Toyota/Hilux/2.8 D 4WD (GUN126)/2015-2020/1GD-FTV 2755 Diesel 130 kW 177 BHP (2015.05 - 2020)
Toyota/Hilux/2.8 D 4WD (GUN126)/2020.05-/1GD-FTV 2755 Diesel 150 kW 204 BHP (2020.05-)
Toyota/Hilux/2.4 D 4WD (GUN125)/2015-/2GD-FTV 2393 Diesel 108 kW 147 BHP (2015-)
Toyota/Hilux/3.0 D-4D (KUN16R)/2005.02-2015/1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.02 - 2015)
Toyota/Hilux/3.0 D-4D 4WD (KUN26)/2005.02-2006.08/1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.02 - 2006.08)
Toyota/Hilux/3.0 D-4D 4WD (KUN26)/2005.02-2015/1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.02 - 2015)
Toyota/Hilux/2.5 D-4D 4WD (KUN25)/2005.03-2015.05/2KD-FTV 2494 Diesel 75 KW 102 BHP (2005.03 - 2015.05)
Toyota/Hilux/2.5 D-4D 4WD (KUN15)/2005.08-2006.10/2KD-FTV 2494 Diesel 65 KW 88 BHP (2005.08 - 2006.10)
Toyota/Hilux/2.5 D-4D 4WD (KUN15, KUN10)/2005.03-2015.05/2KD-FTV 2494 Diesel 75 KW 102 BHP (2005.03 - 2015.05)
Toyota/Hilux/2.5 D-4D 4WD (KUN15_, KUN15R)/2005.06-2015.05/2KD-FTV 2494 Diesel 88 KW 120 BHP (2005.06 - 2015.05)
Toyota/Hilux/2.5 D-4D 4WD (KUN25)/2007.12-2015.05/2KD-FTV 2494 Diesel 106 KW 144 BHP (2007.12 - 2015.05)
Toyota/Hilux/2.5 D-4D 4WD (KUN25_, KUN25R)/2006.06-2015.05/2KD-FTV 2494 Diesel 88 KW 120 BHP (2006.06 - 2015.05)
Toyota/Hilux/3.0 D-4D (KUN16)/2006.08-2015.05/1KD-FTV 2982 Diesel 126 KW 171 BHP (2006.08 - 2015.05)
Toyota/Hilux/3.0 D-4D (KUN16)/2005.08-2015.05/1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.08 - 2015.05)
Toyota/Hilux/3.0 D-4D (KUN26)/2008.05-2012.12/1KD-FTV 2982 Diesel 145 KW 197 BHP (2008.05 - 2012.12)
Toyota/Hilux/3.0 D-4D (KUN26)/2005.08-2015.09/1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.08 - 2015.09)
Toyota/Hilux/3.0 D-4D (KUN26)/2005.03-2015.05/1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.08 - 2015.05) ,
