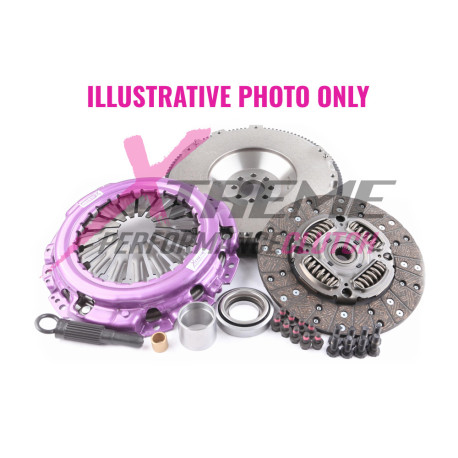

KGM28595-1A Xtreme Clutch Conversion kit GM V8 LS 6 BOLT PATROL 24x25.4mm

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Tech. Info:

Reference: KGM28595-1A

Weight: 25.04

Note:

Clutch Disc Diameter (mm): 280
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.4
Torque (Nm): 700
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 1
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Suitable for:

N/A
