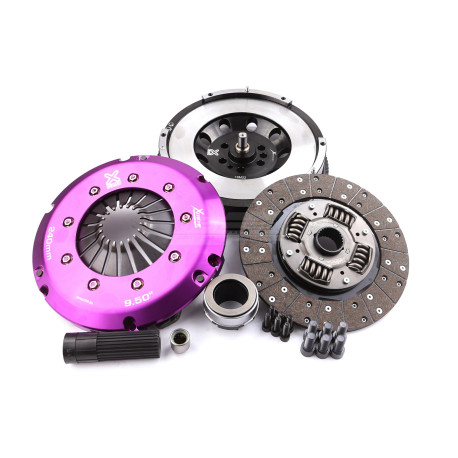

KBM24564-1A Clutch Kit Xtreme Performance Heavy Duty Organic Incl Flywheel

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 600Nm
• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KBM24564-1A

Weight: 15.8

Note:

Clutch Disc Diameter (mm): 240
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 35
Torque (Nm): 600
Flywheel Step: -9.48mm
Design: Single Plate
Stage: Stage 1
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information: Conversion from dual-mass flywheel to single-mass flywheel

Single Plate - Conversion Kit to Solid Flywheel - From 01/2009

Suitable for:

- BMW/3-Series/E90 | 335i/2006-2011/2979cc | 225KW | 306HP | N54 B30 A (2006-2011) 6 Bolt Crank,
BMW/3-Series/E91 | 335i/2006-2012/2979cc | 225KW | 306HP | N54 B30 A (2006-2012) 6 Bolt Crank,
BMW/3-Series/E92 | 335i/2006-2013/2979cc | 225KW | 306HP | N54 B30 A (2006-2013) 6 Bolt Crank,
BMW/3-Series/E93 | 335i/2006-2013/2979cc | 225KW | 306HP | N54 B30 A (2006-2013) 6 Bolt Crank,
BMW/3-Series/E92 | 335Xi/2007-2010/2979cc | 225KW | 306HP | N54 B30 A (2007-2010) 6 Bolt Crank,
BMW/1-Series/E82 | 135i/2007-2013/2979cc | 225KW | 306HP | N54 B30 A (2007-2013) 6 Bolt Crank,
BMW/3-Series/E90 | 335i xDrive/2008-2011/2979cc | 225KW | 306HP | N54 B30 A (2008-2011) 6 Bolt Crank,
BMW/3-Series/E91 | 335i xDrive/2008-2012/2979cc | 225KW | 306HP | N54 B30 A (2008-2012) 6 Bolt Crank,
BMW/1-Series/E88 | 135i/2008-2013/2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 6 Bolt Crank,
BMW/3-Series/E92 | 335i xDrive/2008-2013/2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 6 Bolt Crank,
BMW/Z4/E89 | sDrive 35i/2009.02-2016.08/2979cc | 225KW | 306HP | N54 B30 A (2009.02-2016.08) 6 Bolt Crank,
BMW/1-Series/E82 | 135i/2007-2013/2979cc | 240KW | 326HP | N54 B30 A (2007-2013) 6 Bolt Crank,
