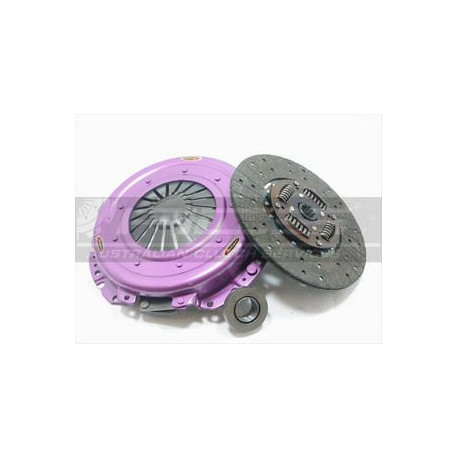

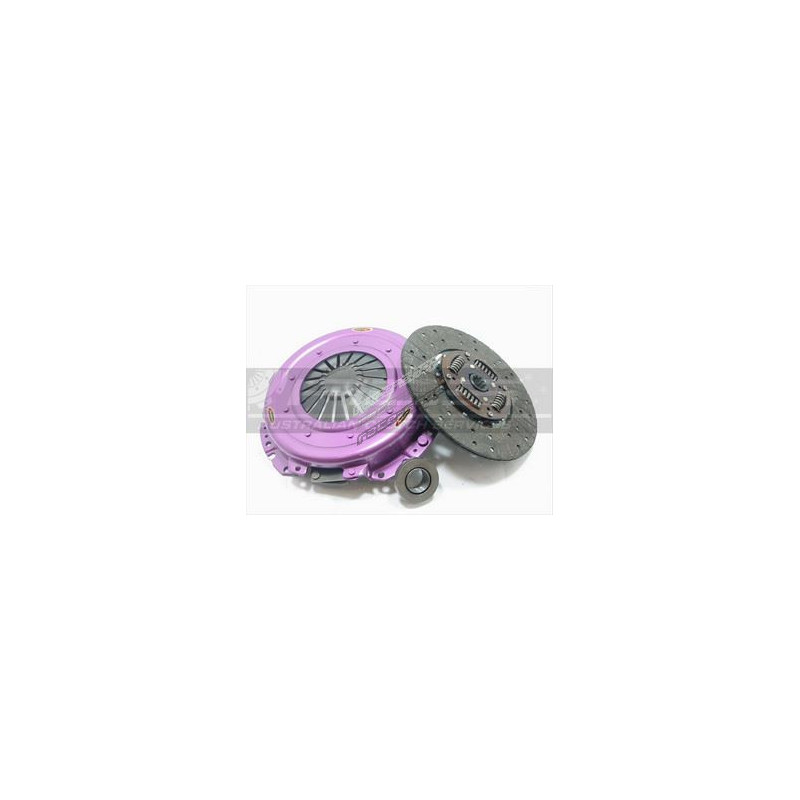

KBU28001-1A Clutch Kit Xtreme Performance Heavy Duty Organic 580Nm 1250kg (15%)

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 580Nm
• Clamp load 1250kg 15% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KBU28001-1A

Weight: 14.23

Note:

Clutch Disc Diameter (mm): 280
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 580
Flywheel Step: 0
Design: Single Plate
Stage: Stage 1
Clamp Load: 1250Kg (15% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Holden/H Series/5.7/1968.05-1970.08/5700 Petrol 206 kW 280 BHP (1968.05 - 1970.08)
Holden/H Series/5.7/1970.08-1971.07/5700 Petrol 206 kW 280 BHP (1970.08 - 1971.07)
Chevrolet/Corvette/C3 | 5.7/1968.09-1970.12/5733 Petrol 224 kW 305 BHP (1968.09 - 1970.12)
Chevrolet/Corvette/C2 | 7.0/1965.10-1967.12/6996 Petrol 291 kW 396 BHP (1965.10 - 1967.12)
Chevrolet/Corvette/C2 | 7.0/1964.10-1966.12/6996 Petrol 317 kW 431 BHP (1964.10 - 1966.12)
Chevrolet/Corvette/C2 | 7.0/1966.10-1967.12/6996 Petrol 324 kW 441 BHP (1966.10 - 1967.12)
Chevrolet/Corvette/C2 | 7.0/1965.10-1967.12/6996 Petrol 343 kW 466 BHP (1965.10 - 1967.12)
Chevrolet/Corvette/C3 | 5.7/1974.09-1975.12/L48 5733 Petrol 123 kW 167 BHP (1974.09 - 1975.12)
Chevrolet/Corvette/C3 | 5.7/1975.09-1977.12/L48 5733 Petrol 134 kW 182 BHP (1975.09 - 1977.12)
Chevrolet/Corvette/C3 | 5.7/1977.09-1978.12/L48 5733 Petrol 138 kW 188 BHP (1977.09 - 1978.12)
Chevrolet/Corvette/C3 | 5.7/1973.01-1981.12/L81(350CUV8) 5733 Petrol 142 kW 193 BHP (1973.01 - 1981.12)
Chevrolet/Corvette/C3 | 5.7/1975.09-1977.12/L82(350CUV8) 5733 Petrol 156 kW 212 BHP (1975.09 - 1977.12)
Chevrolet/Corvette/C3 | 5.7/1977.09-1978.12/L82(350CUV8) 5733 Petrol 164 kW 223 BHP (1977.09 - 1978.12)
Chevrolet/Corvette/C3 | 7.4/1972.09-1973.12/LS4(454CUV8) 7439 Petrol 205 kW 279 BHP (1972.09 - 1973.12)
Chevrolet/Corvette/C3 | 7.4/1971.09-1974.12/LS5(454CUV8) 7442 Petrol 201 kW 273 BHP (1971.09 - 1974.12)
Holden/Monaro/HG | 5.7/1970.08-1971.07/LS9 5736 Petrol 224 kW 305 BHP (1970.08 - 1971.07)
Chevrolet/Corvette/C3 | 5.7/1968.09-1970.12/LT1(350CUV8) 5733 Petrol 224 kW 305 BHP (1968.09 - 1970.12) ,
