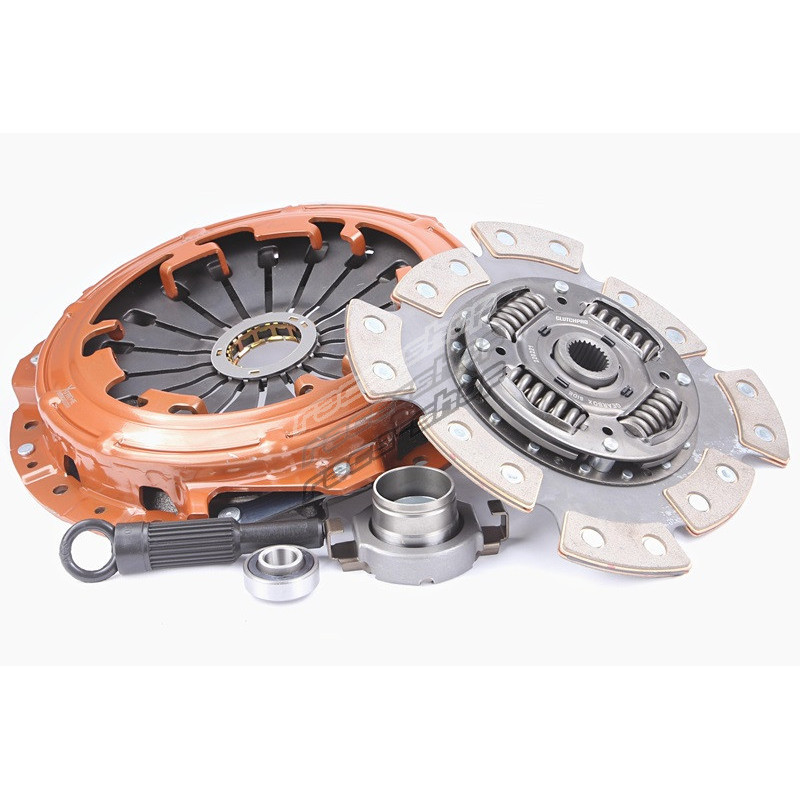

KGM28004-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic 700Nm 900KG (20%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 700Nm
• Clamp load 900Kg 20% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM28004-1B

Weight: 12.69

Note:

Torque (Nm): 700
Clamp Load: 900KG (20% inc.)
Flywheel Step: -12.0mm
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25,4
Recommended for: High Speed 4x4 Trial or Desert Race - Stage 2
Design: Single Plate
Diameter [mm]: 275
Stage: Stage 2

Suitable for:

- Opel/Monterey/3.5 V6 24V (UBS26D. UBS26G)/1998.07-1999.08/6 VE1 3494 Petrol 158 kW 215 BHP (1998.07 - 1999.08)
Vauxhall/Monterey/3.5 V6 24V (M98)/1998.07-1999.08/6 VE1 3494 Petrol 158 kW 215 BHP (1998.07 - 1999.08)
Holden/H Series/3.5 i (TFR26)/2003.02-2005.12/6VE1 3494 Petrol 147 kW 200 BHP (2003.02 - 2005.12)
Holden/H Series/3.5 i 4x4 (TFS26)/2003.02-2005.12/6VE1 3494 Petrol 147 kW 200 BHP (2003.02 - 2005.12)
Holden/H Series/3.5 RS 4x4 (UBS26)/1998.03-2004.09/6VE1 3494 Petrol 158 kW 215 BHP (1998.03 - 2004.09)
Isuzu/Trooper/Gen. III | 3.5 V6 24V/2000.04-2004.08/6VE1 3494 Petrol 158 kW 215 BHP (2000.04 - 2004.08)
Isuzu/Trooper/Gen. III | 3.5 V6 24V AWD/2000.04-2004.08/6VE1 3494 Petrol 158 kW 215 BHP (2000.04 - 2004.08) ,
