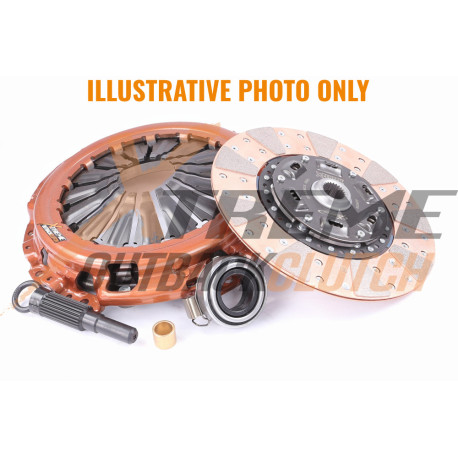

KSZ22001-1C Clutch Kit Xtreme Outback Heavy Duty Cushioned Ceramic 600KG (30%) 370Nm

Xtreme Outback - Heavy duty cushioned ceramic kit /-1CRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 370Nm
• Clamp load 600Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KSZ22001-1C

Weight: 6.44

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.8
Torque (Nm): 370
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 2
Clamp Load: 600KG (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Suitable for:

- Suzuki/Vitara/1.6 (SE 416)/1990.01-1993.12/G16A (8V) 1589 Petrol 55 kW 75 BHP (1990.01 - 1993.12)
Suzuki/Vitara/1.6 (TA01. SE416)/1988.07-1995.01/G16A (8V) 1589 Petrol 59 kW 80 BHP (1988.07 - 1995.01)
Suzuki/Vitara/1.6 (SE 416)/1988.10-1998.12/G16A (8V) 1590 Petrol 55 kW 75 BHP (1988.10 - 1998.12)
Suzuki/Vitara/1.6 (TA. TA01. SE416)/1988.07-1998.03/G16A (8V) 1590 Petrol 59 kW 80 BHP (1988.07 - 1998.03)
Suzuki/Vitara/1.6 16V (TA03. SE416)/1999.10-2002.10/G16B 1589 Petrol 69 kW 94 BHP (1999.10 - 2002.10)
Suzuki/Vitara/1.6 i 16V (ET. TA02. SE416)/1990.07-1998.03/G16B 1590 Petrol 71 kW 97 BHP (1990.07 - 1998.03)
Suzuki/Vitara/1.6 i 16V (TA02. SE416)/1990.07-1999.03/G16B 1590 Petrol 71 kW 97 BHP (1990.07 - 1999.03)
Suzuki/X-90/1.6 i 16V 4x4 (SZ416)/1995.09-1997.12/G16B 1590 Petrol 71 kW 97 BHP (1995.09 - 1997.12) ,
