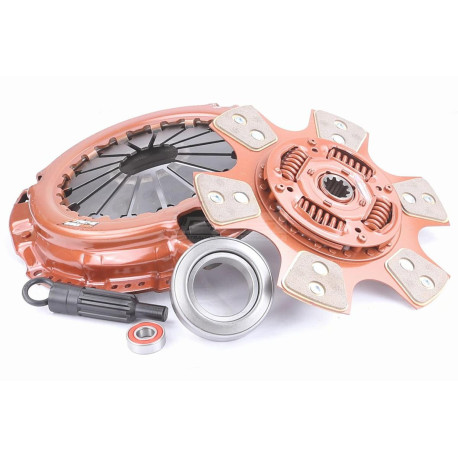

KTY28001-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic 700Nm 900KG (40%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 700Nm
• Clamp load 900Kg 40% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY28001-1B

Weight: 11.84

Note:

Torque (Nm): 710
Clamp Load: 900KG (40% inc.)
Flywheel Step: +0.5mm
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28
Recommended for: High Speed 4x4 Trial or Desert Race - Stage 2
Design: Single Plate
Diameter [mm]: 275
Stage: Stage 2

Suitable for:

- Toyota/Land Cruiser 70/4.0 D 4x4 (HJ75RV)/1984.11-1990.01/2H 3980 Diesel 76 kW 103 BHP (1984.11 - 1990.01) 52mm ID Press On Bearing, Until 12/1988
Toyota/Land Cruiser 70/4.0 D 4x4 (HJ75. HJ75RP)/1984.11-1990.03/2H 3980 Diesel 76 kW 103 BHP (1984.11 - 1990.03) 52mm ID Press On Bearing, Until 12/1988
Toyota/Land Cruiser 60/4.0 Diesel (HJ60)/1980.08-1982.09/2H 3980 Diesel 72 kW 98 BHP (1980.08 - 1982.09)
Toyota/Land Cruiser 60/4.0 Diesel (HJ60)/1982.01-1985.12/2H 3980 Diesel 74 kW 101 BHP (1982.01 - 1985.12)
Toyota/Land Cruiser 60/4.0 Diesel (HJ60)/1982.10-1989.12/2H 3980 Diesel 76 kW 103 BHP (1982.10 - 1989.12) 52mm ID Press On Bearing, Until 12/1988
Toyota/Land Cruiser 60/4.0 D (HJ60_)/1981.10-1988.01/2H 3980 Diesel 77 kW 105 BHP (1981.10 - 1988.01)
Toyota/Land Cruiser 60/4.0 (FJ62_V)/1984.11-1987.08/3F 3956 Petrol 101 kW 137 BHP (1984.11 - 1987.08)
Toyota/Land Cruiser 40/4.0 D (HJ47_P. HJ47RP)/1980.08-1984.09/2H 3980 Diesel 72 kW 98 BHP (1980.08 - 1984.09)
Toyota/Land Cruiser 40/4.0 D (HJ47RV)/1980.08-1984.12/2H 3980 Diesel 72 kW 98 BHP (1980.08 - 1984.12)
Toyota/Land Cruiser 40/4.0 4WD (HJ47)/1980.08-1983.10/2H 3980 Diesel 76 kW 103 BHP (1980.08 - 1983.10)
Toyota/Land Cruiser 40/4.0 D (HJ47_P)/1980.08-1984.10/2H 3980 Diesel 76 kW 103 BHP (1980.08 - 1984.10)
Toyota/Land Cruiser 40/4.0 D (HJ47_V)/1980.08-1984.10/2H 3980 Diesel 76 kW 103 BHP (1980.08 - 1984.10) ,
