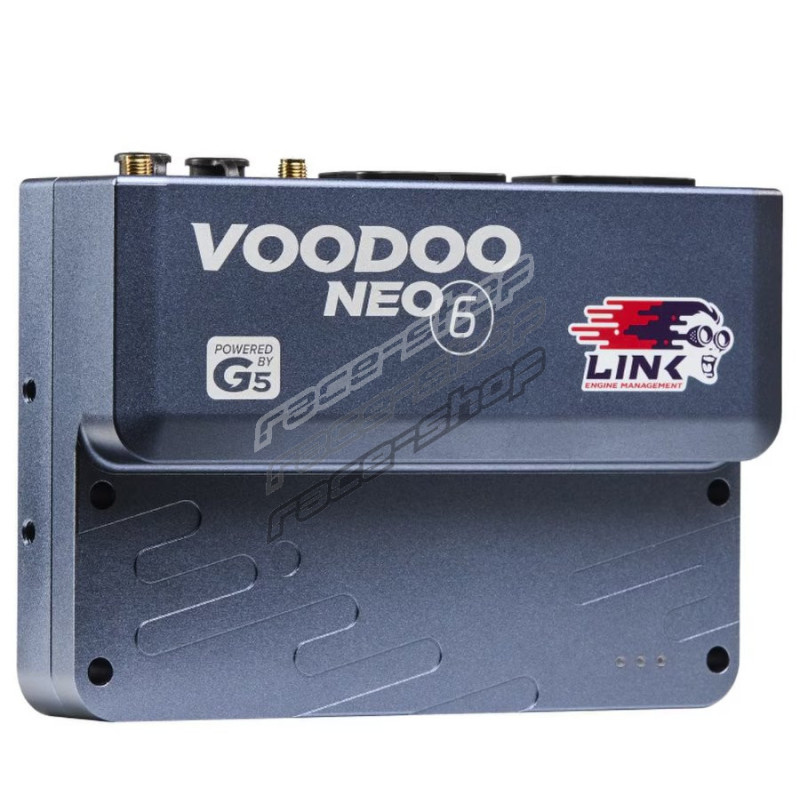

Link G5 Voodoo Neo 6

The G5 Voodoo Neo 6 can run:

8 cylinders with port or direct injection and direct spark,
6 cylinders with direct/port staged injection and direct spark

The G5 Voodoo processing units are the perfect choice for professional-level motorsport.

The G5 Voodoo Neo 6 works on a variety of vehicles. Please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.

In the box:

• G5 Voodoo Neo 6 ECU
• USB-C Connection Cable
• WiFi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• QuickStart Guide (A5)
• Installer I/O Table (A3)
• Link stickers

Inputs/Outputs
Control up to 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, thanks to:
12 injector pins
8 ignition pins
6 aux. output pins
(4 injector pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)
6 ADIO pins
Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
Neo 6 has Inj/DI pins which are used as either an injector pin, Aux or a Digital Input pin. They can read PWM/frequency.
Any unused injector/ignition pins can be used as an auxiliary pin.
All ignition and auxiliary pins are back feed protected.
3 analog inputs
10 digital inputs
4 temperature inputs
2 knock inputs
2 trigger inputs
1 x wideband lambda controller
Dual H-Bridge e-throttle control
Dedicated ignition switch pin
5v sensor supply
CAN 1 via Weipuconnector. CAN connector now supplies power and ground.

Communications
USB-C (cable included)
Power over USB
WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
CAN: New WEIPU connector supplies power for CAN devices
Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
GPS: Functional when GPS antenna connected (antenna included)

Data Logging
1gb logging capacity
Logging over WiFi
100kHz max. total logging rate
250 logging channels

Size & Weight
Length: 107mm (4.21 inches)
Width: 158mm (6.22 inches)
Max side height: 45mm (1.77 inches)
Weight: 730grams (25.75 ounces)

Mounting
4x M5 threaded mount holes on the sides for bracket mounting
4x M5 threaded mount holes on the underside for clean mounting
4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts)
