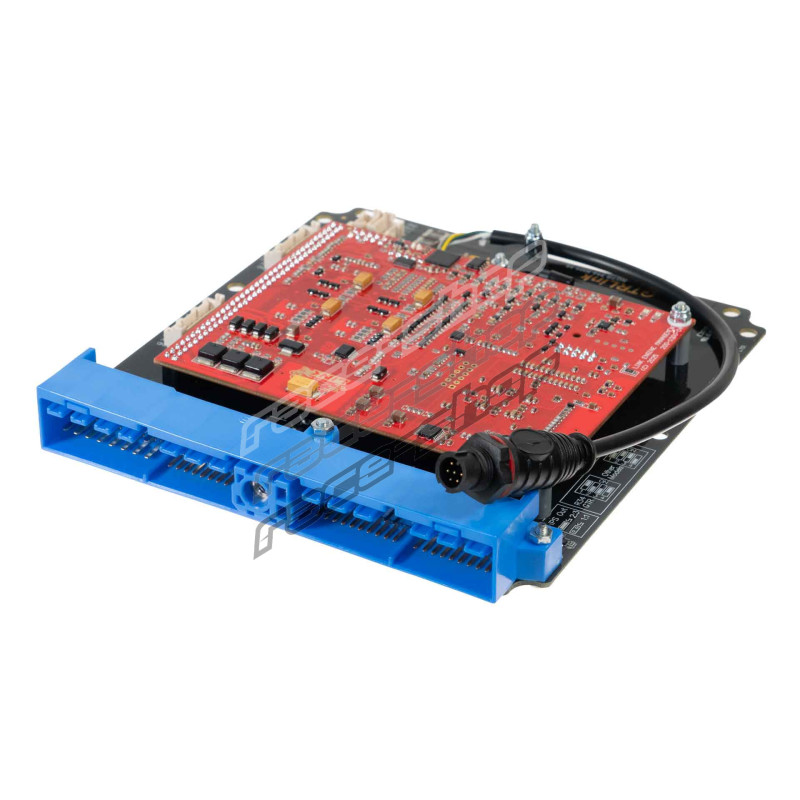

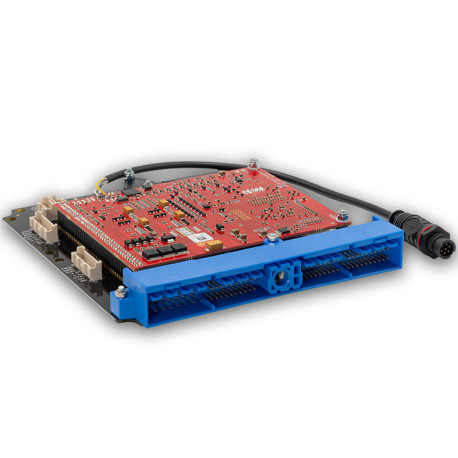

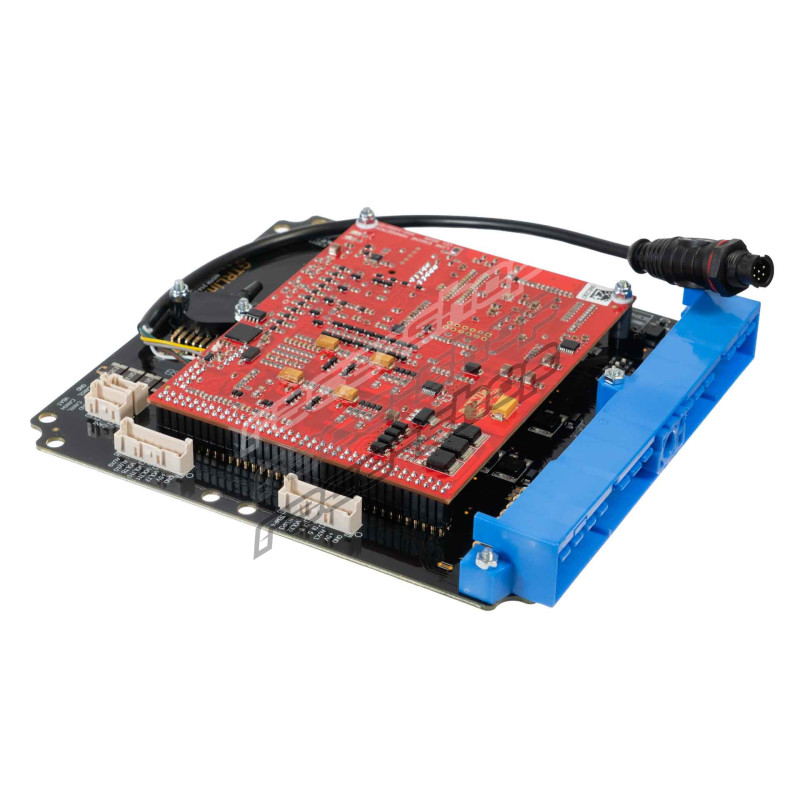

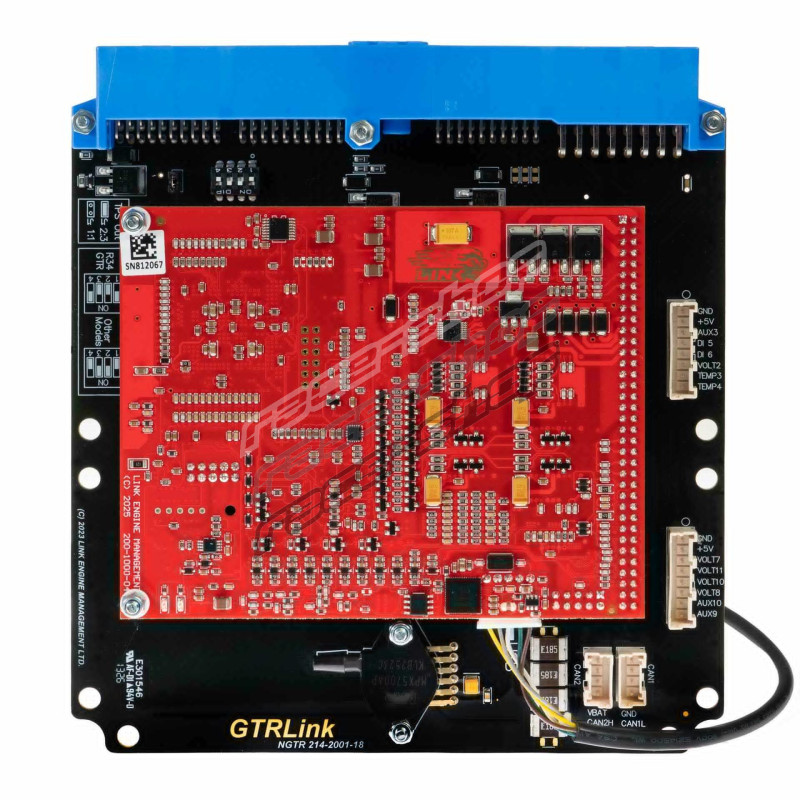

GTRLink - NGTRX

The NGTRX is Designed to suit the blue plug Nissan RB engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• This model includes an onboard 4 bar or 7 bar MAP sensor.
• Most factory features are supported.
• This ECU includes support for E-Throttle (Drive-by-Wire)
• Now with 4 pin powered CAN connector (See note below).

Suitable applications for 214-4100 automotive computer unit:

RB26DETT engines found in R32, R33, R34 Skyline GTRs and Autech 260RS Stageas

RB20DE engines found in R32 & R33 Skylines, A31 Cefiros

RB20DET engines found in R32 Skylines (incl 4wd), A31 Cefiros and C33 Laurels. – Injector 4&6 need swapping

RB25DE engines found in R32 & R33 Skylines, C33 & C34 Laurels and A31 Cefiros.

RB25DET engines found in R33 Skylines (incl 4wd) and C34 Laurels

RB30DE/DET/DETT engines made using Non Neo heads and blue plug looms

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.
