CYBUL Mazda MX-5 NB – 1UZ / 3UZ Engine Swap Kit V2

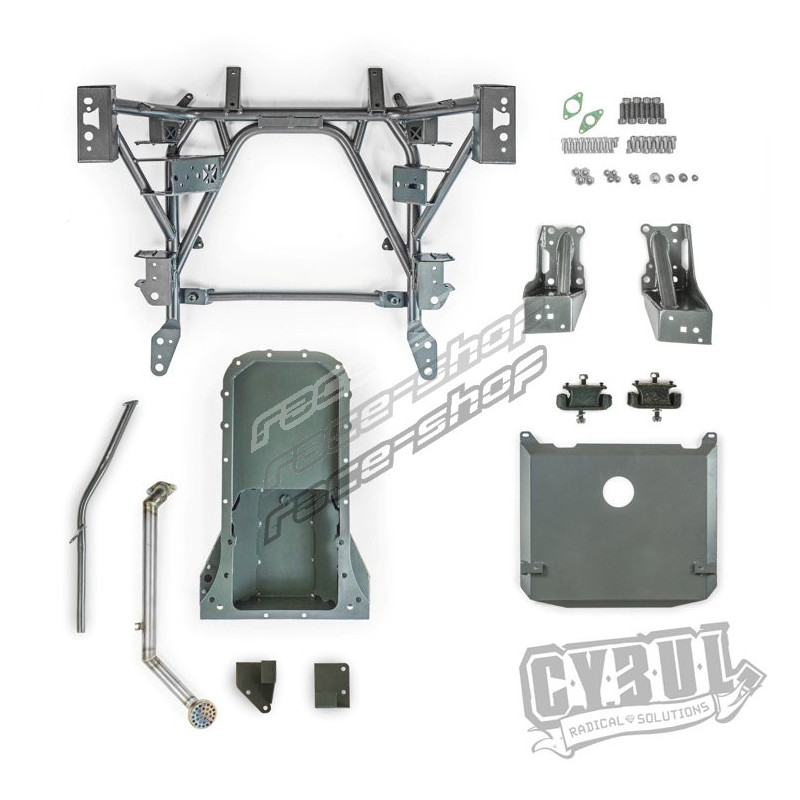

The MX5-XNB-SWA-1UZ-002 swap kit (V2) is a complete solution for installing Toyota 1UZ and 3UZ V8 engines into the Mazda MX-5 NB chassis. Expanding on the V1 configuration, this version includes a tubular chromoly front subframe, removing the need to modify the factory subframe while ensuring proper oil pan clearance.

The integrated subframe enhances chassis rigidity and optimises suspension geometry, while increasing available engine bay space for improved accessibility and fabrication flexibility. The system is engineered to provide stable engine positioning and reliable performance under high torque conditions typical of V8 applications.

Key Features

• Complete swap kit including tubular front subframe
• Designed for Toyota 1UZ / 3UZ V8 engine installation
• Chromoly tubular subframe with integrated oil pan protection
• Roll center correction with control arm mounting points raised by 18 mm
• Custom oil pan engineered for MX-5 NA/NB chassis
• Dedicated oil pickup matched to supplied oil pan
• Repositioned oil dipstick with exhaust-friendly routing
• Engine mount brackets for correct engine positioning
• Heavy-duty engine mounts for high torque applications
• Heat shields for engine mount protection
• Retains essential OEM mounting points (steering rack and accessories)
• Supplied with complete installation hardware (bolts, nuts, gaskets)

Suitable for

• Mazda MX-5 NB
