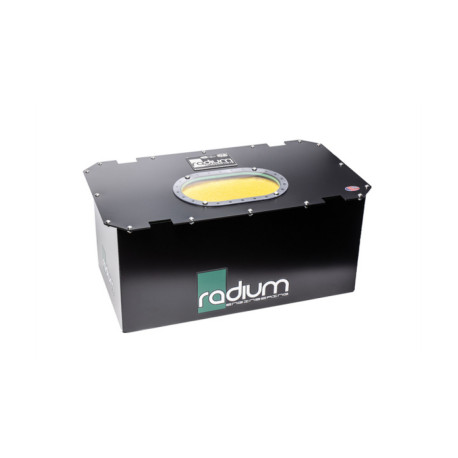

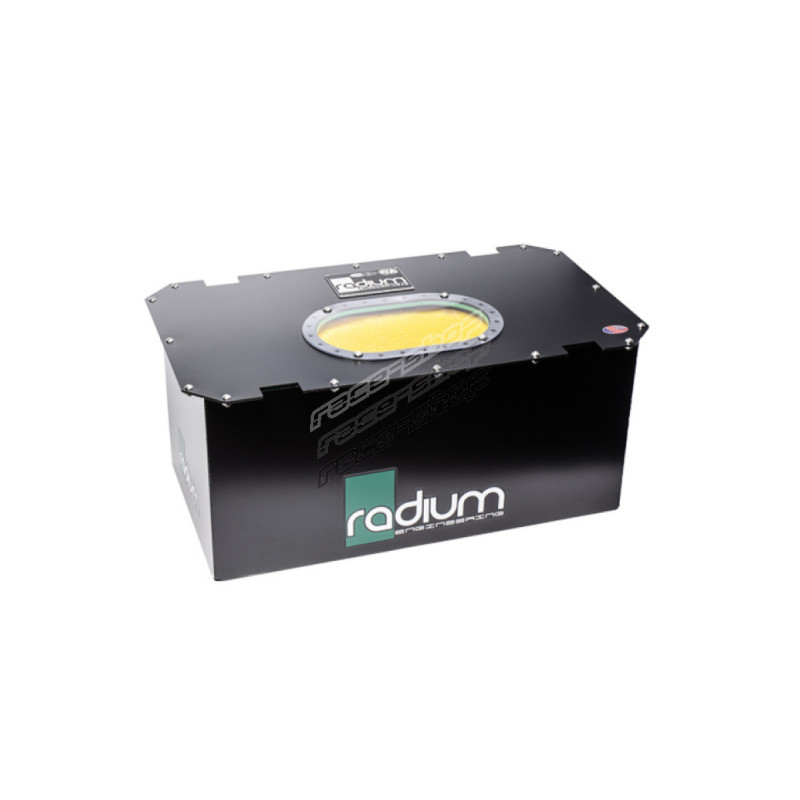

RADIUM ENGINEERING R14A Fuel Cell - 14 Gallon

Radium Engineering 20-0614 Fuel Tank - 14 gal (≈ 53 l) Certified RA-Series R14A medium capacity fuel tank designed for professional motorsports. Compliant with FIA FT-3 1999 and SFI 28.3 homologations - resistant to gasoline, E85 and methanol.

Key features

• Aluminum 5052 can, powder coated - low weight, high impact and corrosion resistance.
• Comes with polymer bladder + anti-sloshing foam - reduces fuel ripple on overload.
• Threaded 6 × 10″, 24-bolt ring for easy installation of FCST pump modules.
• FKM/Viton® gaskets guarantee tightness with alcohol fuels.
• Serial number + set of certificates valid for 5 years from date of manufacture.

External dimensions

• Length: 826mm
• Width: 450mm
• Height: 343mm

Application

• Endurance, rally-raid, off-road, drifting, time-attack - anywhere you need a large fuel reserve and safety.
• Ideal for E85 conversions and vehicles with fuel-intensive engines (V8, turbo-I6).
• Facilitates lowering the center of gravity and transferring weight to the rear of the chassis.

Kit contents

• Fuelcell R22A (cert. FIA/SFI) with anti-sloshing foam.
• Aluminum housing with inspection cover.
• Mounting ring, 2× FKM 6 × 10″ gasket, stainless steel screw set.
• Certificate of conformity and serial number.
