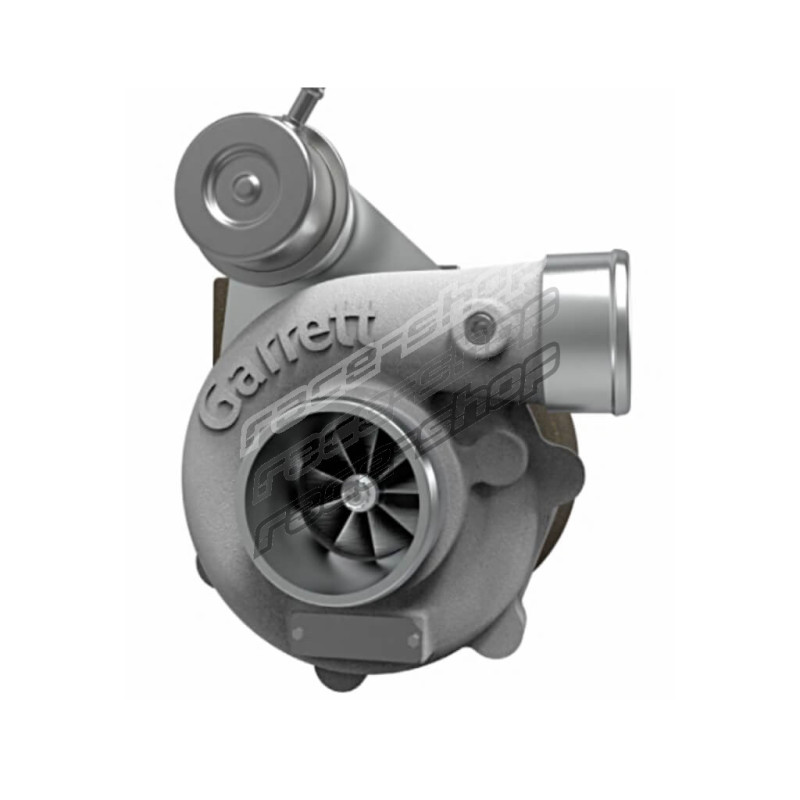

Garrett 896055-5003S Turbocharger GBC Series GBC22-350, 0.64 A/R, Wastegated

Garrett GBC22-350 performance turbocharger with a wastegated T25 turbine housing.

Garrett Boost Club Line Turbochargers are high performance journal bearing products in a cost-effective price range.

GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger.

Specifications

• Frame: GBC22
• Bearing: journal bearing
• Rotation: standard
• Compressor wheel: 44 mm inducer, 56 mm exducer, 0.59 A/R
• Turbine wheel: 50 mm inducer, 46 mm exducer, 84 trim, 0.64 A/R
• Turbine housing flange: T25
• Wastegate: internal (wastegated housing)
• Power: up to 350 HP
• Displacement: 1.0-2.5 L

Features

• 44MM Compressor Inducer / 56MM Compressor Exducer
• 17, 20 And 22 Outline Interchangeable
• Internal Wastegate Assembly With Calibrated Actuator
• Billet Compressor Wheel With Extended Tip Design For Higher Pressure Ratio Capability
• Journal Bearing Rotating Group
