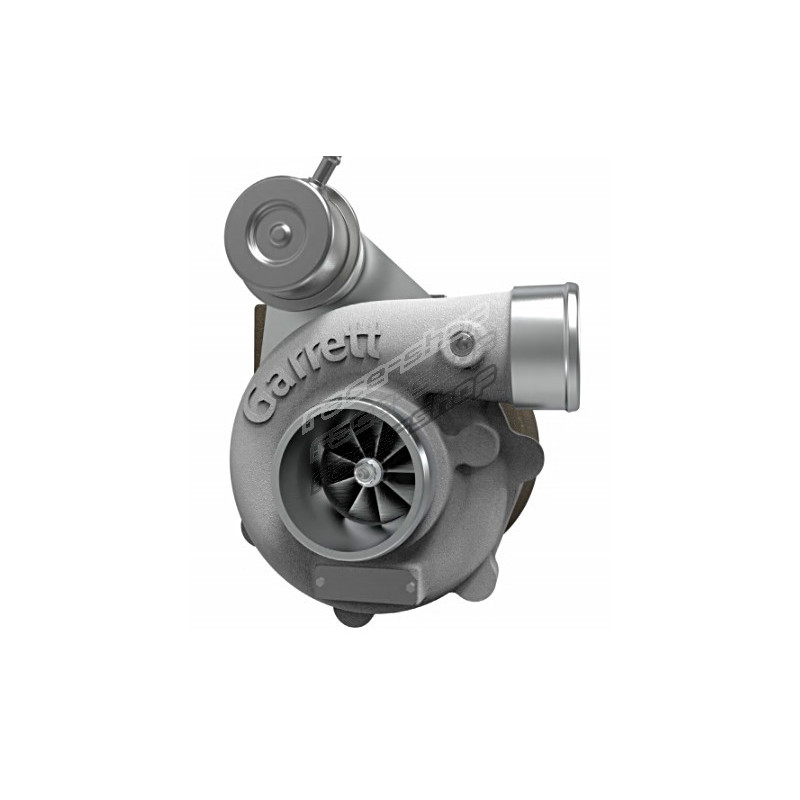

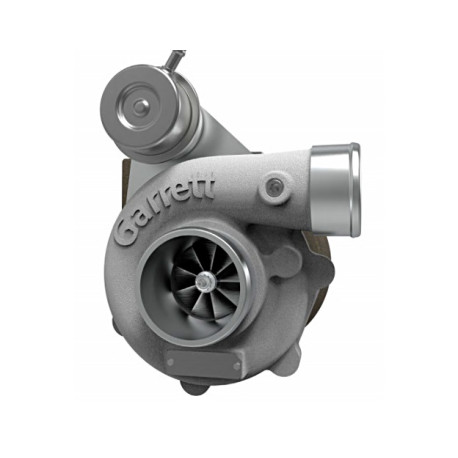

GARRETT 896051-5004S TURBINE GBC14-200, 0.45 O/V, 3-BOLT / 4-BOLT, WG

GARRETT BOOST | CLUB LINE

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. There are 4 Club Line turbochargers with different compressor inducer sizes and horsepower ranges: GBC14-200, GBC17-250, GBC20-300, and GBC22-350. GBC17, 20, 22 are outline interchangeable for use as stage upgrades. Forged, fully-machined compressor wheels are offered in inducer sizes of 34mm, 36mm, 39mm, and 44mm. They can support from 200 up to 350 horsepower. The oil cooled center housing features the latest generation of journal bearing rotor group. Club Line turbochargers are fully assembled with an internally wastegated turbine housing. Garrett’s technicians calibrate the actuator for optimum performance, eliminating any need for adjustment.

GARRETT BOOST CLUB LINE TURBOCHARGER GBC14-200

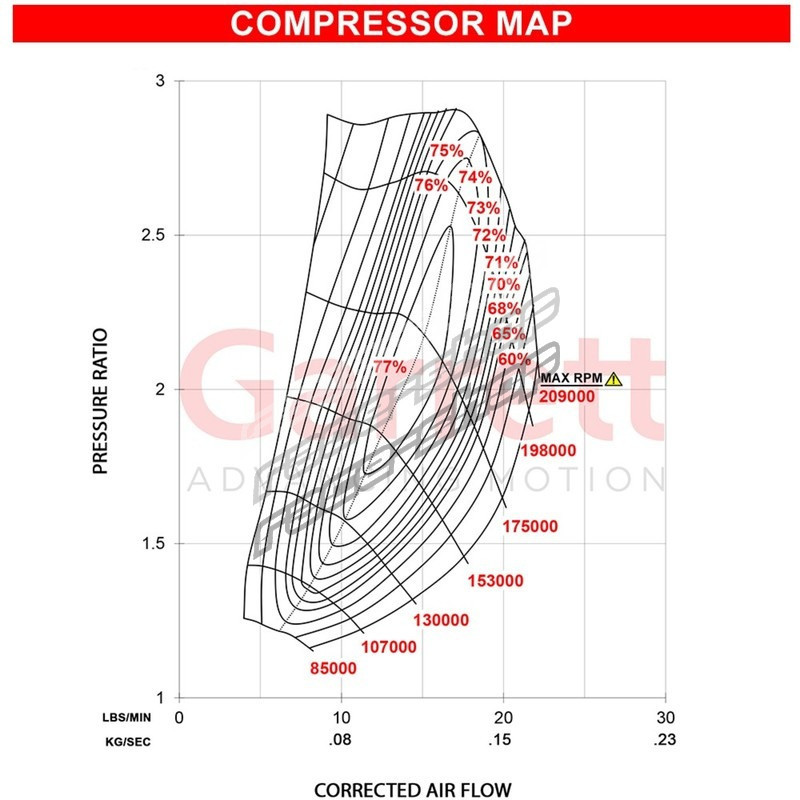

Compressor Specs

A/R = 0.52

CWH EXDUCER = 46 mm

CWH INDUCER = 34 mm

CWH TRIM: 55

FLOW: 22lbs/min

Turbine Specs

A/R = 0.45

TWH EXDUCER = 39 mm

TWH INDUCER = 36 mm

TWH TRIM: 84

FLOW: 9lbs/min

PEAK EFF: 74%

Product category: Turbocharger
