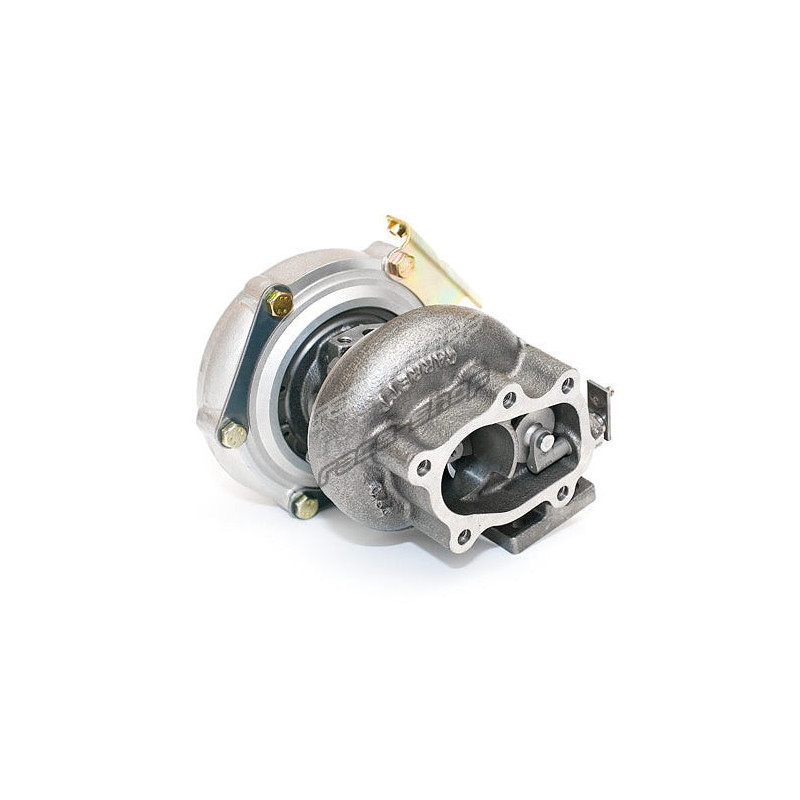

GARRETT 836026-5011S TURBOCHARGER GT2860R 0.64 TRIM 76 W/O ACTUATOR

Ball bearing.

Oil & Water cooled bearign system.

Direct replacement upgrade turbocharger for GT2560R - 466541-0001 & GT2560R - 466541-0004 used on Nissan SR20DET engine

Upgrade turbocharger for GT2860RS - 739548-0001; turbine stage outline interchangeable.

Provide better boost response than GT2871R - 743347-0001 & GT2871R - 743347-0002 turbochargers.

T25 turbine inlet flange.

Great size for applications with packing constrains.

Ideal for smaller displacement engines making up to 460 Hp.

Turbine housing option available.

Actuator not include.

HORSEPOWER 280HP - 460HP

DISPLACEMENT 1.8L - 2.7L

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836026-5011S | 472560-5015S | GT2871R | 53.8 | 47.0 | 76 | .64 | 71.0 | 51.2 | 52 | .60

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 835998-5009S | 446179-5067S

Applicable Garrett P/N's:

TBO -  472560-0015

            472560-15

CHRA - 446179-0067

Product category: Turbocharger
