PowerAlign Wheel Mounting Guide Pin — Kit (4 pcs)

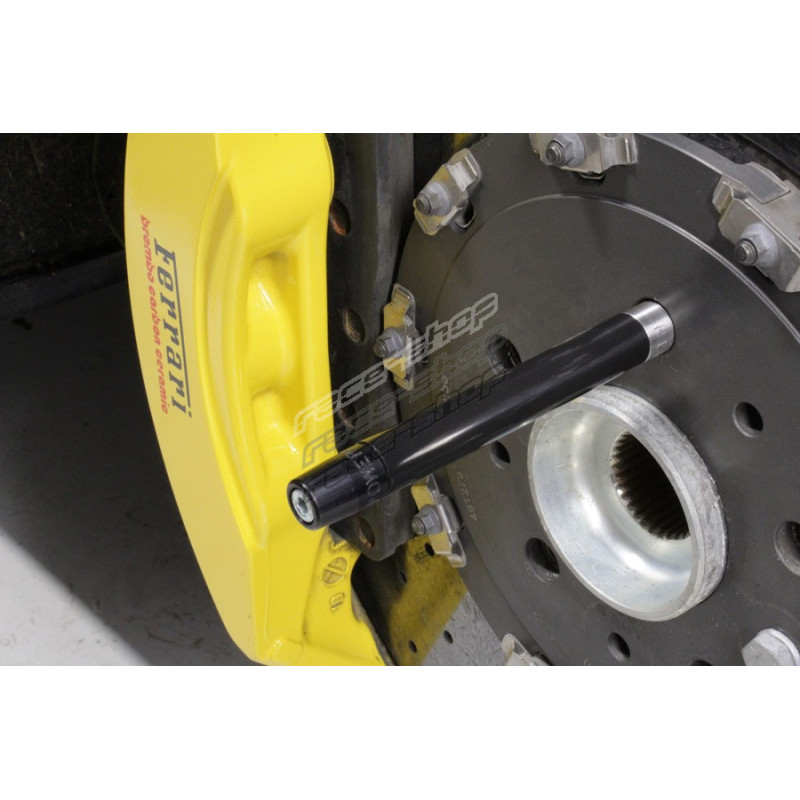

The Powerflex PowerAlign Wheel Mounting Guide Pin Kit is a 4-piece workshop set that makes fitting alloy wheels on lug-bolt (stud-less) vehicles safer, faster and easier. Thread the correct pin into one of the bolt holes on the wheel hub, lift the wheel and rest it on the pin, then slide it into position — the pin holds the wheel level and keeps the remaining holes aligned so the other bolts thread in cleanly. It removes the awkward, back-straining job of holding the wheel with one hand while starting the first bolt, cutting the risk, hassle and strain of wheel mounting.

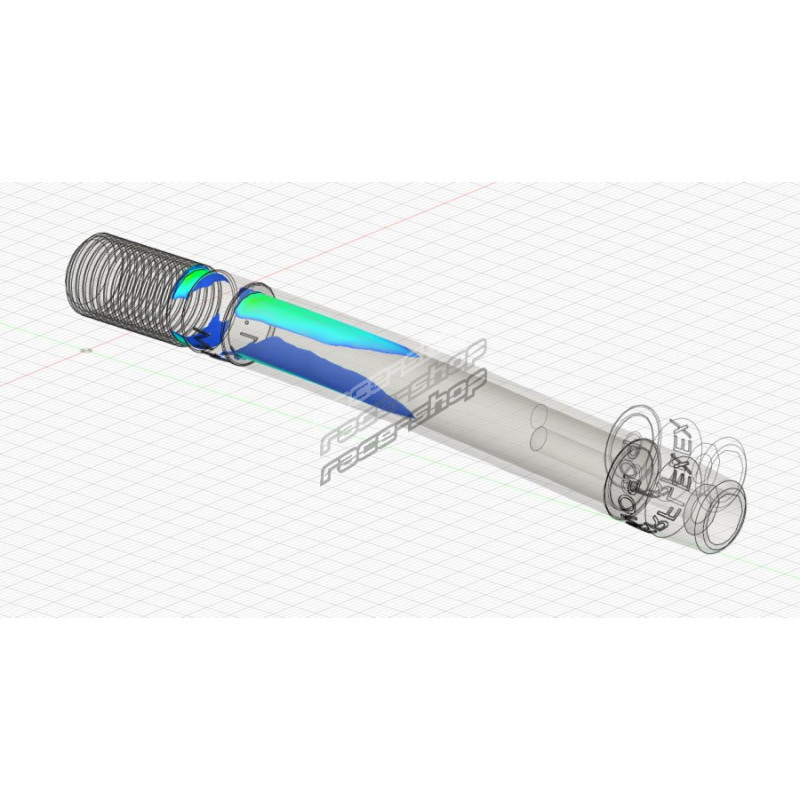

Each pin is CNC-machined from high-strength AISI 303 stainless steel — around 50% stronger than plated mild steel — with colour-coded protective sleeves for quick size identification and anodised 2011-T6 aluminium caps that absorb knocks and protect the wheel. The kit covers the common wheel-bolt threads and comes in a steel storage case for the toolbox. Simulated and real-world workshop tested, backed by a lifetime warranty.

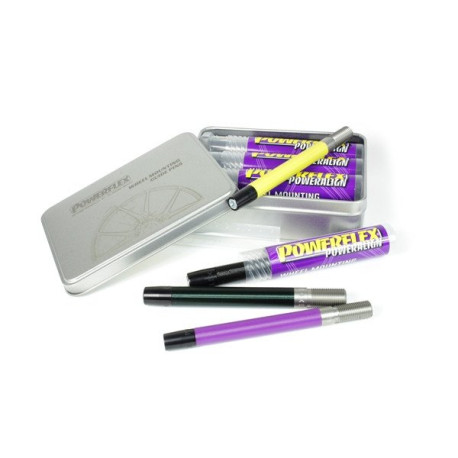

Kit contents: 4 guide pins (one each of the common threads — M12×1.25, M12×1.5, M14×1.25, M14×1.5) in a steel storage case.

PowerAlign Wheel Mounting Guide Pin

• PF99-512-125 M12 × 1.25
• PF99-512-15 M12 × 1.5
• PF99-514-125 M14 × 1.25
• PF99-514-15 M14 × 1.5
• PF99-510 4-piece workshop kit (steel case)
