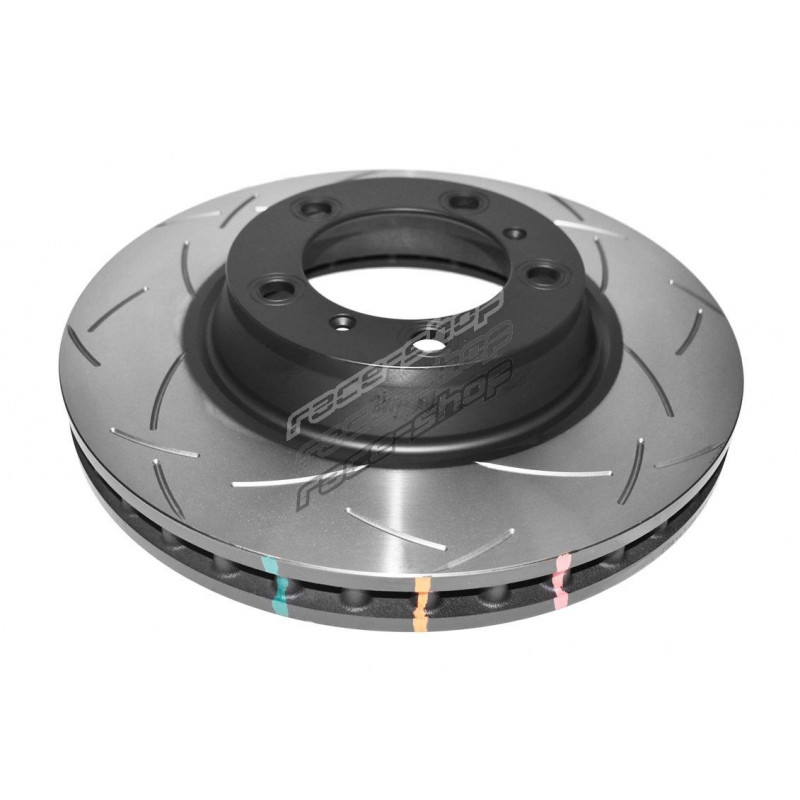

DBA 4000 series T3 DBA42386S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 330
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 98
Minimum Thickness [mm]: 32
Thickness [mm]: 34
Height [mm]: 69.5
Stage: Stage 4

Suitable for:

Front - PORSCHE/911 (996)/3.6 Carrera 4S Cast Iron Disc Only (2002-2005) , Brake Caliper: Brembo Front - PORSCHE/911 (996)/3.6 Carrera S Cast Iron Disc Only (2003-2005) , Brake Caliper: Brembo Front - PORSCHE/911 (996)/3.6 Twin Turbo 4 Cast Iron Disc Only (2000-2001) , Brake Caliper: Brembo Front - PORSCHE/911 (996)/3.6 Twin Turbo 4 Cast Iron Disc Only (2001-2004) , Brake Caliper: Brembo Front - PORSCHE/911 (996)/3.6 Twin Turbo 4S Cast Iron Disc Only (2003-2005) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4 GTS 410BHP Cast Iron Disc Only (2010-2012) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4S Cast Iron Disc Only (2004-2005) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4S Cast Iron Disc Only (2005-2008) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4S Cast Iron Disc Only (2008-2012) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4S Targa 355BHP Cast Iron Disc Only (2006-2009) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera 4S Targa 385BHP Cast Iron Disc Only (2008-2012) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera GTS 410BHP Cast Iron Disc Only (2010-2012) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera S Cast Iron Disc Only (2004-2005) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera S Cast Iron Disc Only (2005-2008) , Brake Caliper: Brembo Front - PORSCHE/911 (997)/3.8 Carrera S Cast Iron Disc Only (2008-2012) , Brake Caliper: Brembo Front - PORSCHE/Boxster (718)/2.5 Turbo 350BHP (2016-) , Brake Caliper: Brembo Front - PORSCHE/Boxster (718)/2.5 Turbo GTS 365BHP (2018-) , Brake Caliper: Brembo Front - PORSCHE/Cayman (718)/2.5 Turbo 350BHP Cast Iron Disc Only (2016-) , Brake Caliper: Brembo Front - PORSCHE/Cayman (718)/2.5 Turbo GTS 365BHP Cast Iron Disc Only (2018-) , Brake Caliper: Brembo
