Pedders 803195 Extra Heavy Duty Suspension Kit With Assembled struts. For Ford Ranger, PX

Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit With Assembled Struts For Ford Ranger

Improved load carrying, towing ability, and ground clearance.

Do you use your Ranger for load carrying and/or towing? Then Pedders Suspension has the solution for you.

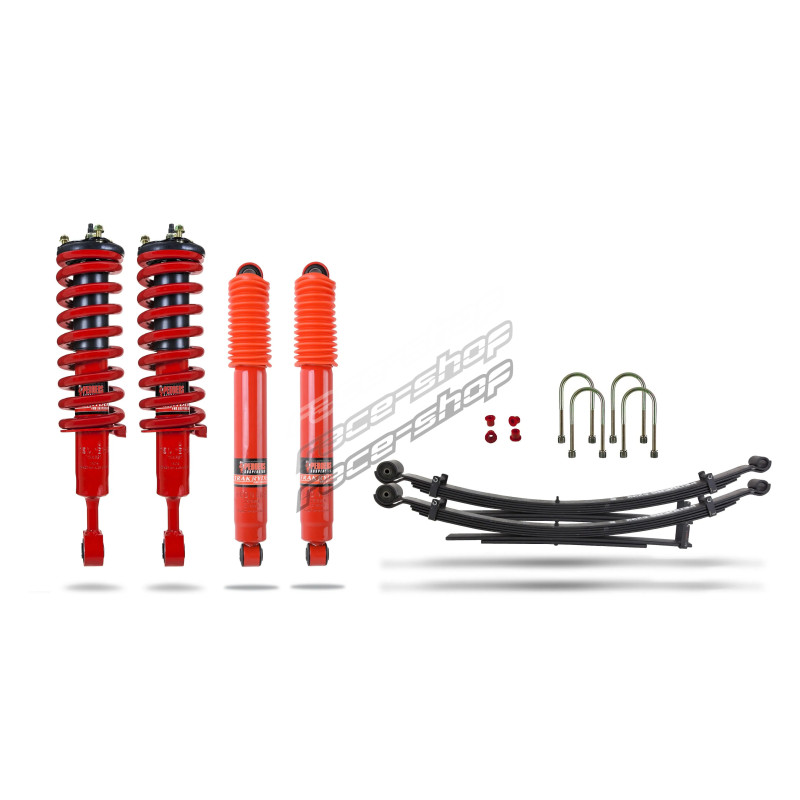

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs, as well as the necessary bushes and U-bolts for installation.

This is our third-level heavy-duty kit, designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Ranger sits low at the rear when towing or carrying a load and you operate in this condition all the time, this kit offers a significant improvement over the standard vehicle.

This kit is for those who run their vehicle heavily laden all the time. Operation of the vehicle unladen with this kit is not recommended and will result in an unacceptably harsh ride. Pedders recommends a minimum of 350kg load in the rear at all times. However, note that an average canopy and tow bar weigh approximately 130-150kg.

Vehicle Lift: This kit raises the vehicle by approximately 40mm, improving ground clearance and overall appearance. It can accommodate larger tires. If you have additional equipment at the front, such as a winch or bull bar, please contact us to ensure the correct springs for your application.

If you use the vehicle in a variably laden state, consider one of our other heavy-duty kits, either 803118 or 803120.

The fully assembled Ezifit struts in this kit allow for quick and easy installation. These feature a Pedders Foam Cell shock, Pedders spring, as well as a new top mount, bump stop, and boot—no need to use spring compressors or reuse old parts. Simply bolt them straight on.

After fitting, we strongly recommend performing a wheel alignment for optimal vehicle performance.

Have questions? Contact our team at Pedders for assistance.

Key Features

• Extra Heavy Duty Kit
• Improved Load Carrying and Towing
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• Air Assist Air Bag System
• Backed by our 2-year / 25,000-mile warranty

Vehicle Height Information

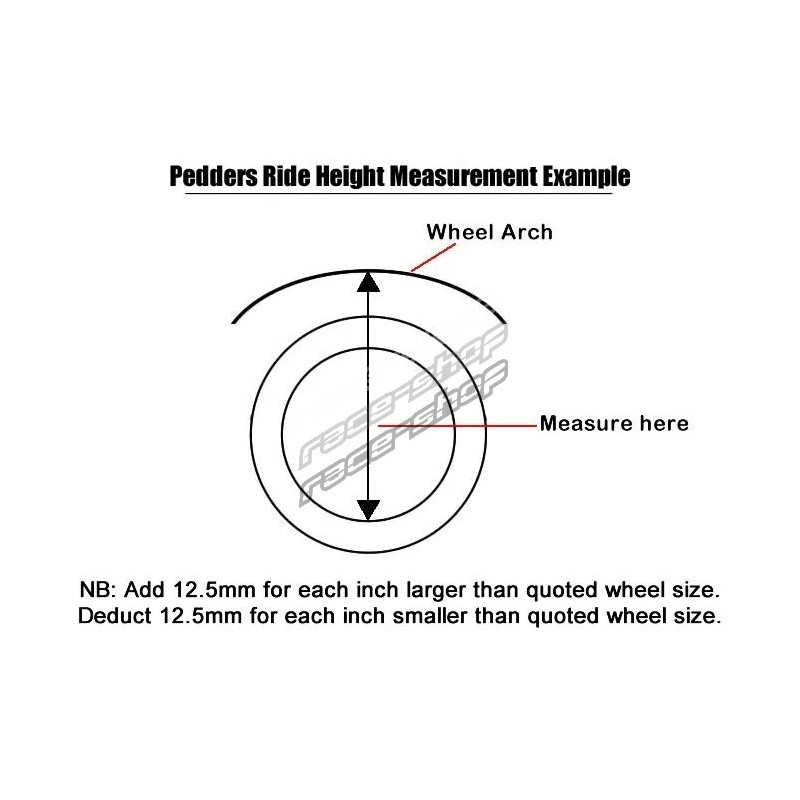

Front: 840mm with 17-inch wheels Rear: Approx. 40mm higher than standard. Notes: Heights should be measured as shown in the secondary picture.

Tech. Info:

Reference: 803195

Weight: 101.18

Note: Height: approx. +40mm/Minimum weight required: 350kg rear

Suitable for:

Ford Ranger PX MK2, 4WD | 2015-2018 PX MK2, 4WD - Kits , Height: approx. +40mmFord Ranger PX MK3, 4WD 2.2L and 3.2L ONLY | 2018-2019 PX MK3, 4WD 2.2L and 3.2L ONLY - Kits , Height: approx. +40mmFord Ranger PX, 4WD | 2011-2015 PX, 4WD - Kits , Height: approx. +40mm
