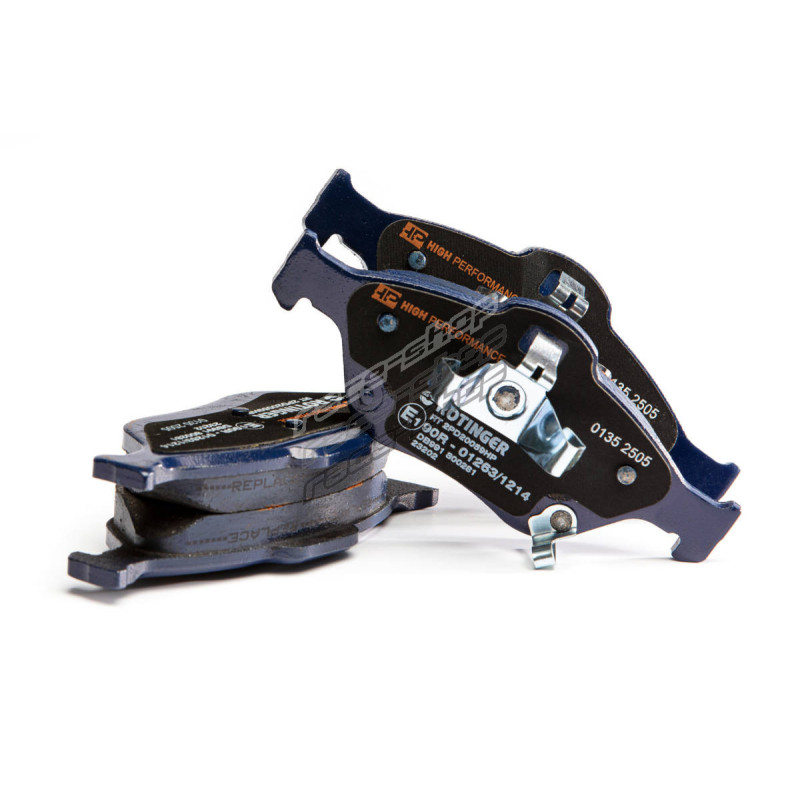

Rear performance brake pads Rotinger HP, 1PD15399HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.
• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 40,90mm
• Height 2: 40,90mm
• Width: 98,80mm
• Width 2: 98,80mm
• Thickness: 15,70mm
• Thickness 2: 15,70mm
• Weight: 0,78kg

Technical information:

This package contains 1 set of brake pads for rear axle.

• Axle: Rear
• Brake system: Mando
• WVA Number: 23543

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB3282; GDB3284; GDB3298; GDB3387; GDB3432; GDB3495
Delphi: LP1539
Textar: 23543 150 0 5 T4067; 2354301; 2354306
OEM: 48413 21B10; 58302-26A20; 58302 17A00; 58302 1CA00; 58302 1CA10; 58302 1FA50; 58302 26A00; 58302 26A10; 58302 26A30; 58302 2EA00; 58302 2EA30; 58302 2HA00; 58302 38A10; 58302 38A20; 58302 38A30; 58302 39A40; 58302 3AA20; 58302 3CA20; 58302 3KA30; 58302 3KA40; 58302 3KA51; 58302 3KA60; 583023CA10; S583023KA31; 58302 1FA50; 58302 1FE00; 58302 2EA00; 58302 2GA00; 58302 38A10; 58302 3CA10; 58302 3CA20; 58302 3FA10; 58302 3KA10; S583021FE00; 58302-3KA60; 583021FA50; 583022EA00; 5830238A10; 583023KA51; 58302-1FA50; 58302-2EA00; 5830238A10; 583023KA51
