Rear performance brake pads Rotinger HP, 1PD18249HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.

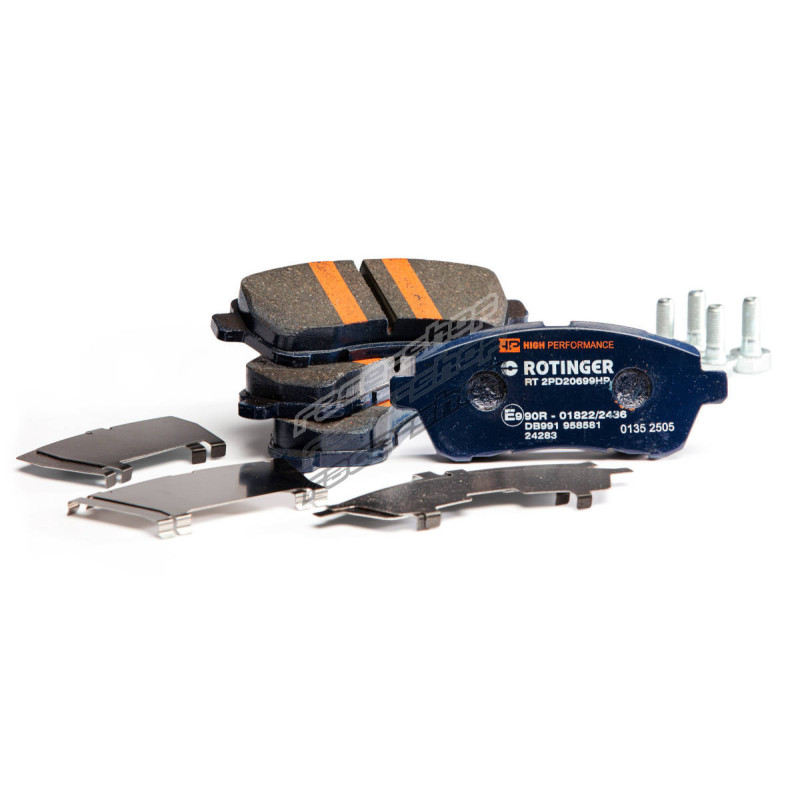

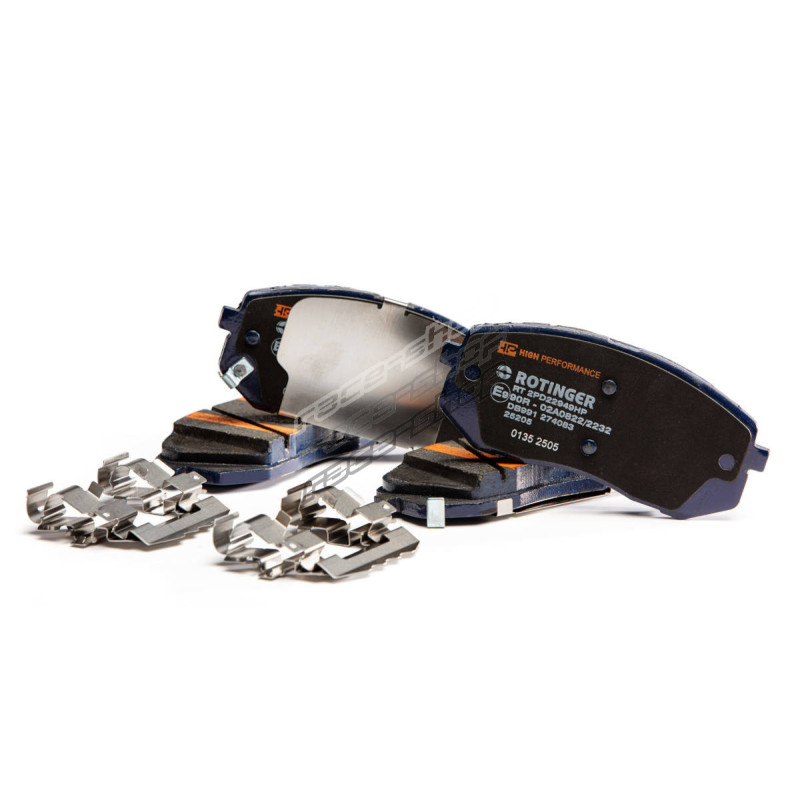

• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 55,90mm
• Height 2: -mm
• Width: 105,65mm
• Width 2: -mm
• Thickness: 17,20mm
• Thickness 2: -mm
• Weight: 1,12kg

Technical information:

This package contains 1 set of brake pads for rear axle.

• Axle: Rear
• Brake system: TRW
• WVA Number: 23914

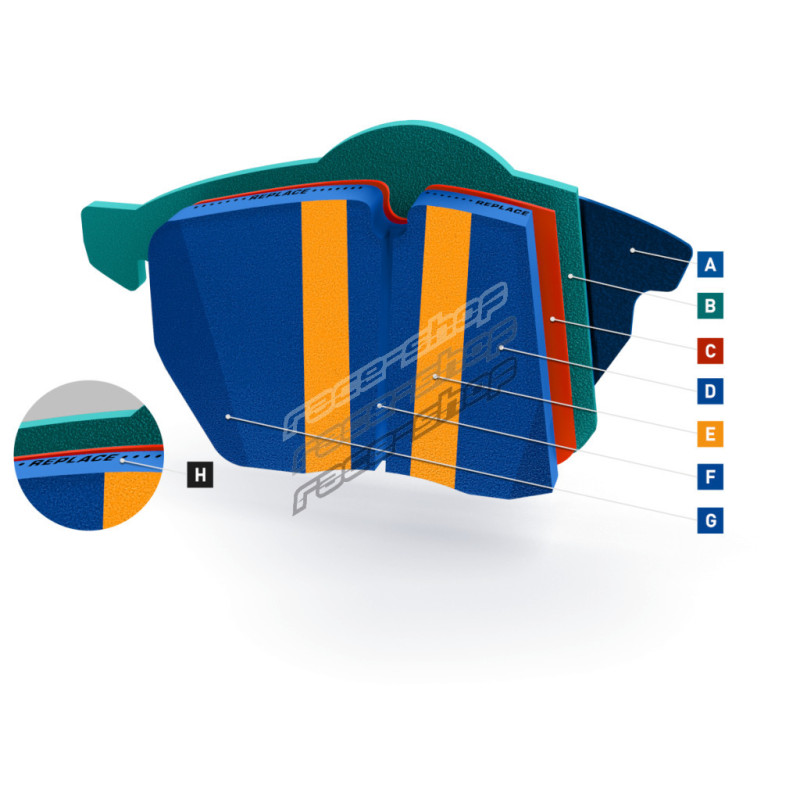

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB1551; GDB1622
Delphi: LP1824
Textar: 23914 172 1 4 T4822; 23914 172 2 4 T4822; 2391401; 2391402; 2391417214; 2391481; 2391482; 2448302
OEM: 1K0 698 451 B; 1K0 698 451 D; 1K0 698 451 E; 1K0 698 451 F; 1K0 698 451 G; 1K0 698 451 H; 1K0 698 451 K; 1K0 698 451 P; 1K0698451; 3C0 698 451 A; 4F0 698 451 A; 4F0 698 451 B; 4F0 698 451 D; 4F0 698 451 E; 8E0 698 451 F; 8E0 698 451 J; 8E0 698 451 M; JZW 698 451 D; 1K0 698 451 B; 1K0 698 451 D; 1K0 698 451 E; 1K0 698 451 F; 1K0 698 451 G; 1K0 698 451 H; 1K0 698 451 K; 1K0 698 451 P; 1K0698451; 4F0 698 451 A; 4F0 698 451 B; 4F0 698 451 D; 4F0 698 451 E; 8E0 698 451 F; 8E0 698 451 J; 8E0 698 451 M; JZW 698 451 D; JZW 698 451 M; 1K0 698 451 B; 1K0 698 451 D; 1K0 698 451 E; 1K0 698 451 F; 1K0 698 451 G; 1K0 698 451 H; 1K0 698 451 K; 1K0 698 451 P; 1K0698451; 4F0 698 451 A; 4F0 698 451 B; 4F0 698 451 D; 4F0 698 451 E; 8E0 698 451 F; 8E0 698 451 M; JZW 698 451 D; JZW 698 451 M; 1K0 698 451 B; 1K0 698 451 D; 1K0 698 451 E; 1K0 698 451 F; 1K0 698 451 G; 1K0 698 451 H; 1K0 698 451 K; 1K0 698 451 P; 1K0698451; 4F0 698 451 A; 4F0 698 451 B; 4F0 698 451 D; 4F0 698 451 E; 8E0 698 451 F; 8E0 698 451 J; 8E0 698 451 M; JZW 698 451 D; JZW 698 451 M; 4F0698451A; 4F0698451D; 4F0698451E; L4FD698451; L5ND698451; 1K0 698 451 H; L5ND698451; 1K0 698 451 D; 1K0 698 451 G; 1K0 698 451 H; 1KD698451A; 1TD698451; 1K0 698 451 D; 1K0 698 451 G; 1K0 698 451 H; 1KD698451A; 1TD698451
