Front performance brake pads Rotinger HP, 2PD17239HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.

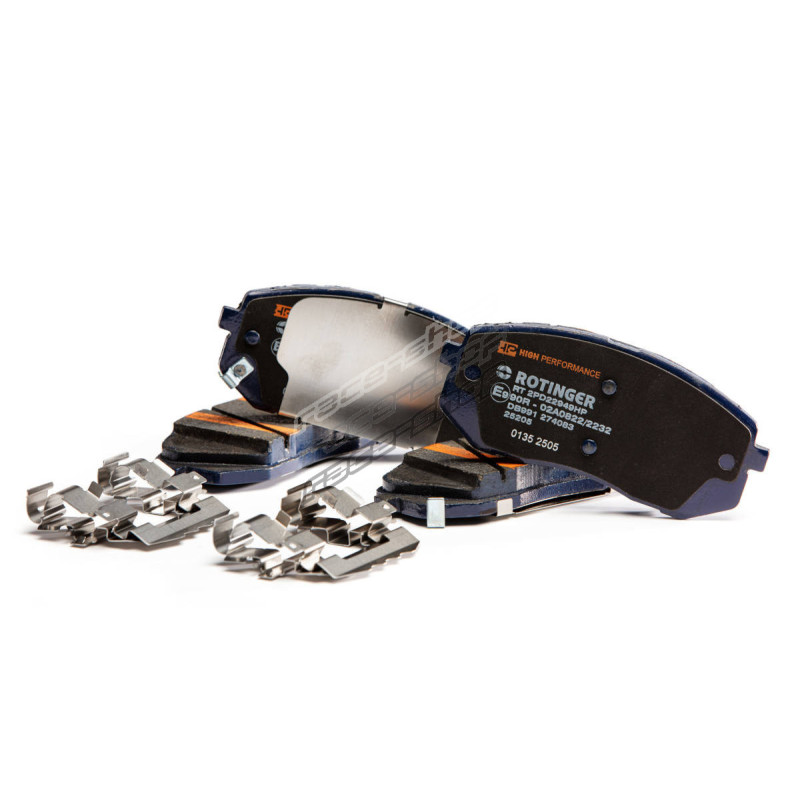

• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 69,50mm
• Height 2: 70,80mm
• Width: 155,40mm
• Width 2: 156,65mm
• Thickness: 20,60mm
• Thickness 2: 20,60mm
• Weight: 2,12kg

Technical information:

This package contains 1 set of brake pads for front axle.

• Axle: Front
• Brake system: Continental
• WVA Number: 23738

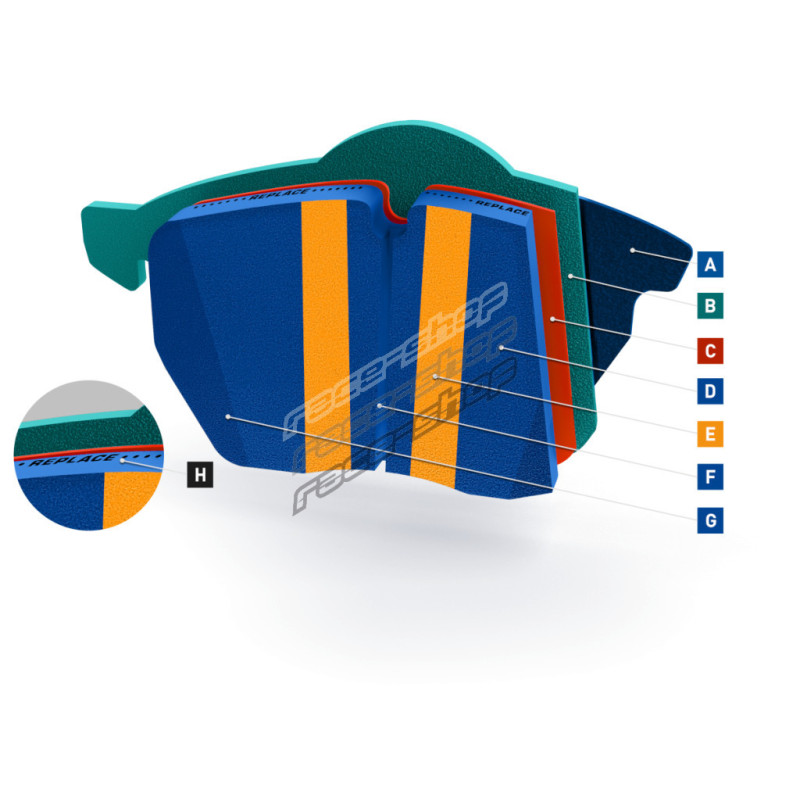

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB1492; GDB1613; GDB1657; GDB1686
Delphi: LP1723
Textar: 23402 206 0 5 T4139; 2340203; 2373807; 2373820605T4139; 2415501
OEM: 71772211; 77363604; 77364224; 12803551; 16 05 088; 16 05 094; 16 05 095; 16 05 098; 16 05 113; 16 05 136; 16 05 137; 16 05 139; 16 05 282; 16 05 283; 16 05 972; 16 05 975; 16 06 098; 93166798; 93172174; 93172950; 93175378; 93176121; 93183728; 93183729; 93185751; 93185752; 93186003; 93188111; 93188112; 1012800120; 12765397; 12800120; 12803551; 93166943; 93185751; 93188111; 93188112; 16 05 095; 16 05 137; 93166798; 93172174; 93172950; 93175378; 93176121; 93183728; 93183729; 93185751; 93185752; 93186003; 93188111; 93188112; 93 166 798; 93 172 174; 93 172 950; 93 175 378; 93 183 728; 93 183 729; 93188111
