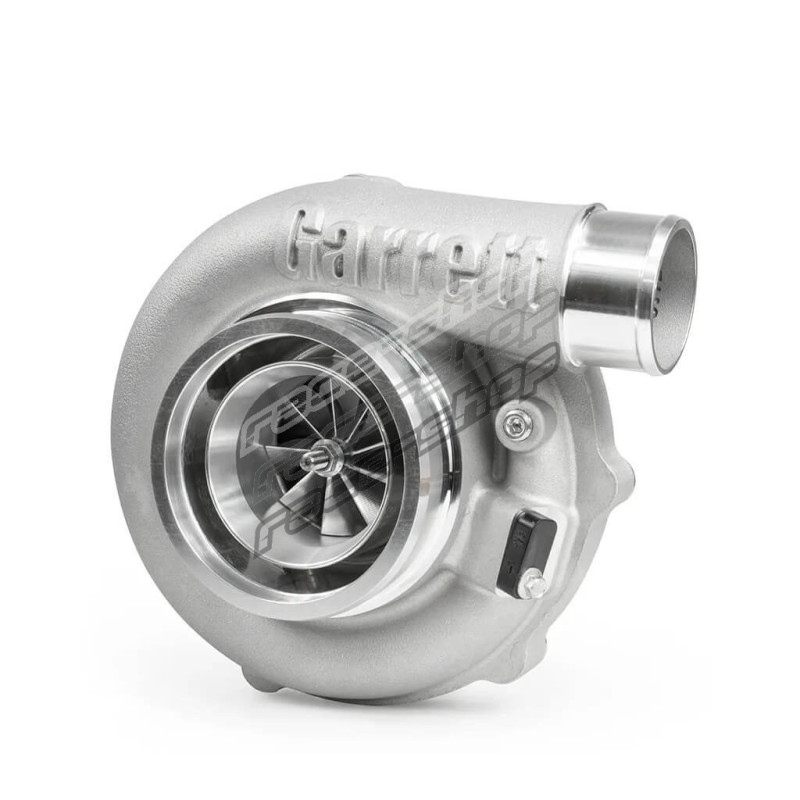

Garrett 934123-5001S Supercore G-Series II G35-990, Trim 65

Garrett G35-990 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series II turbochargers.

Now you can harness the power of motorsport legends and experience the durability of champions in your car with the new G-Series II universal Performance Turbos line from Garrett.

Direct upgrade path for Gen I customers with just a CHRA purchase.

Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.

Stainless steel turbine housings are rated up to 1050C degree.

Specifications

• Frame: G35
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim, 0.72 A/R
• Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 140 krpm
• Power: up to 990 HP
• Displacement: 2.0-5.5 L

Features

• G-Series II G35-990 standard rotation supercore
• G-Series II utilizes Gen I compressor and turbine housings
• Increased efficiency at high flow rates
• 62mm Compressor Inducer / 76mm exducer
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
• Oil restrictor and water fittings included
