Garrett 880547-5026S Supercore G-Series G47-1850

Garrett G47-1850 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.

The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure.

To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed.

Specifications

• Frame: G47
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 88 mm inducer, 120 mm exducer, 0.88 A/R
• Turbine wheel: 93 mm inducer, 88 mm exducer, 90 trim
• Max shaft speed: 93 krpm
• Power: up to 1850 HP
• Displacement: 2.5-10.0 L

Fits & compatible parts

• Compatible turbochargers: GTX47

Features

• Outline interchangeable with GTX Gen II turbos
• High flow, high efficiency GTX Gen II comp aero

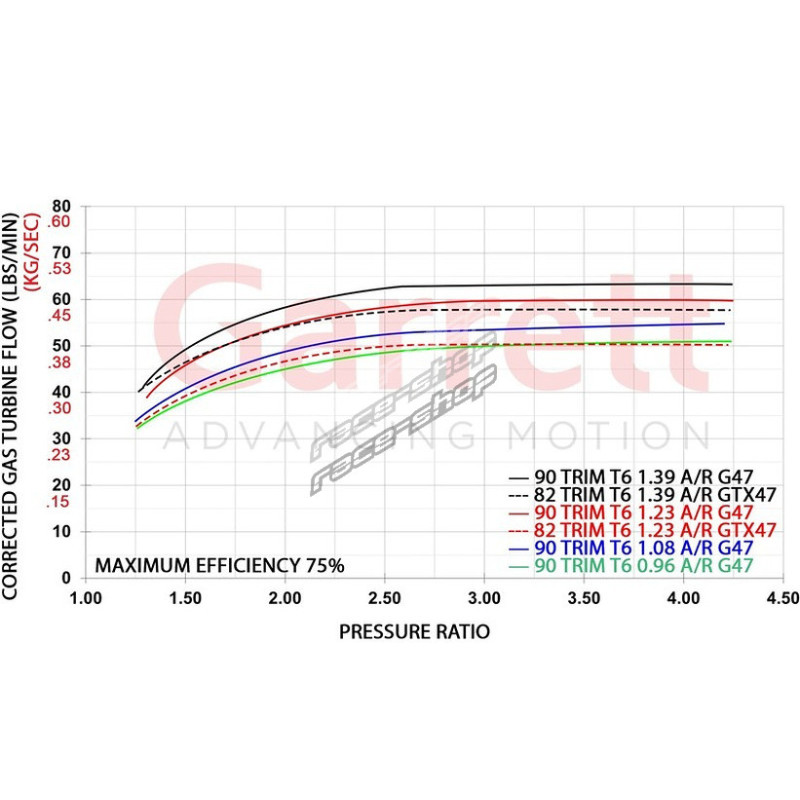

• G-Series turbine wheel aero increases performance compared to GTX47 Gen II
• Flow: up to 20% more
• Spool: up to +9% (estimated by flow, efficiency, and inertia)
• One-piece lightweight aluminum center hsg/backplate
